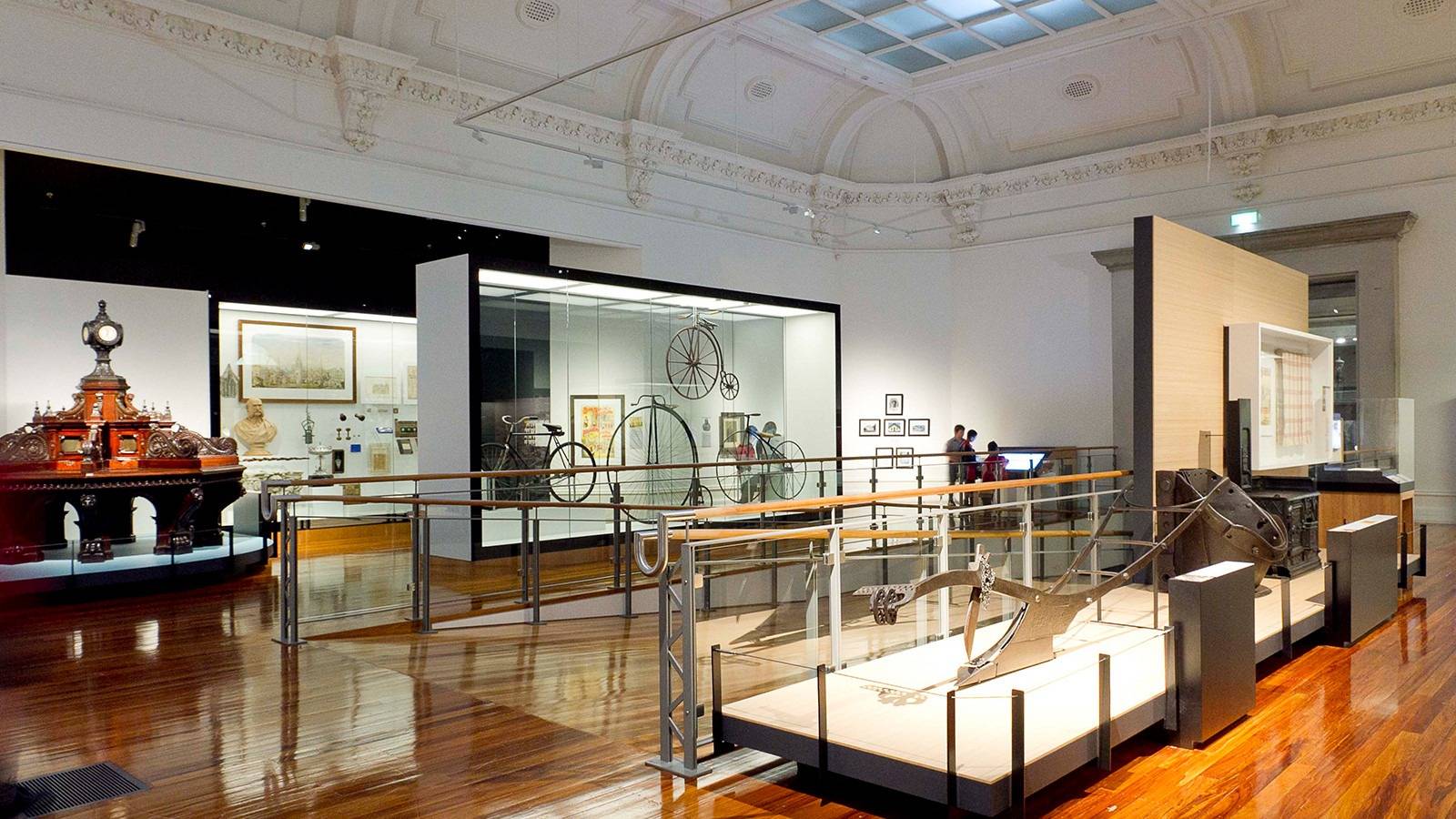

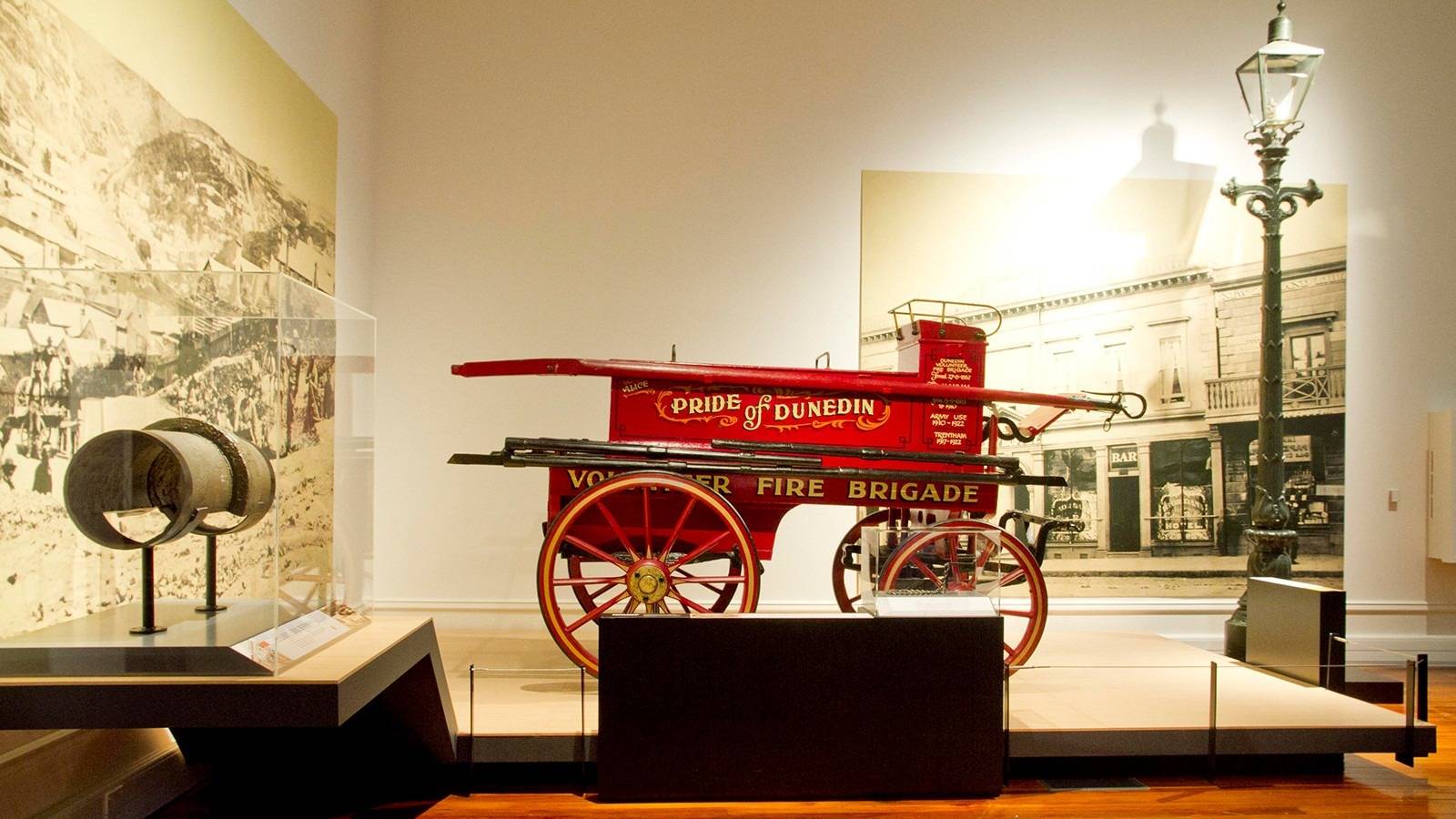

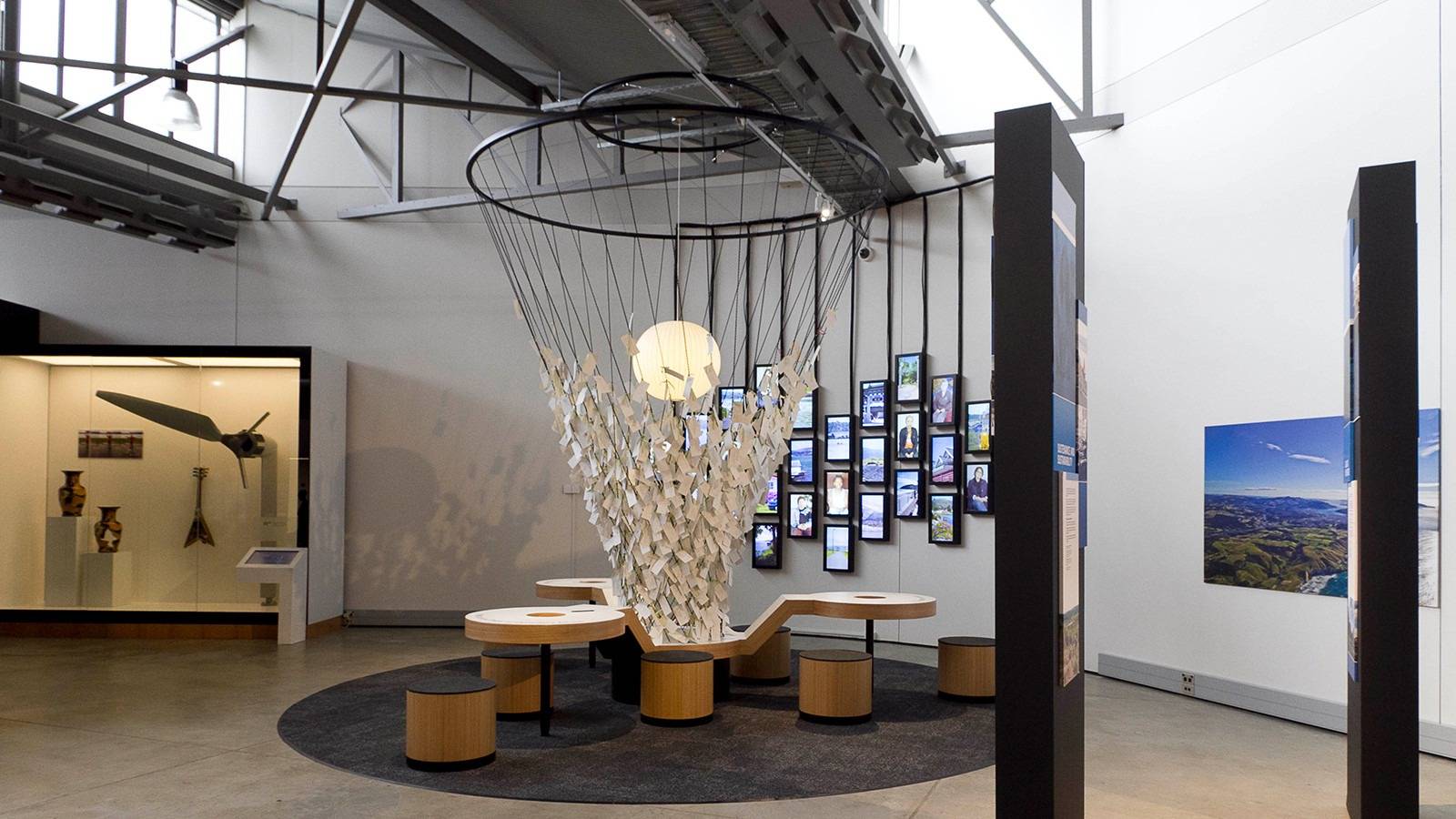

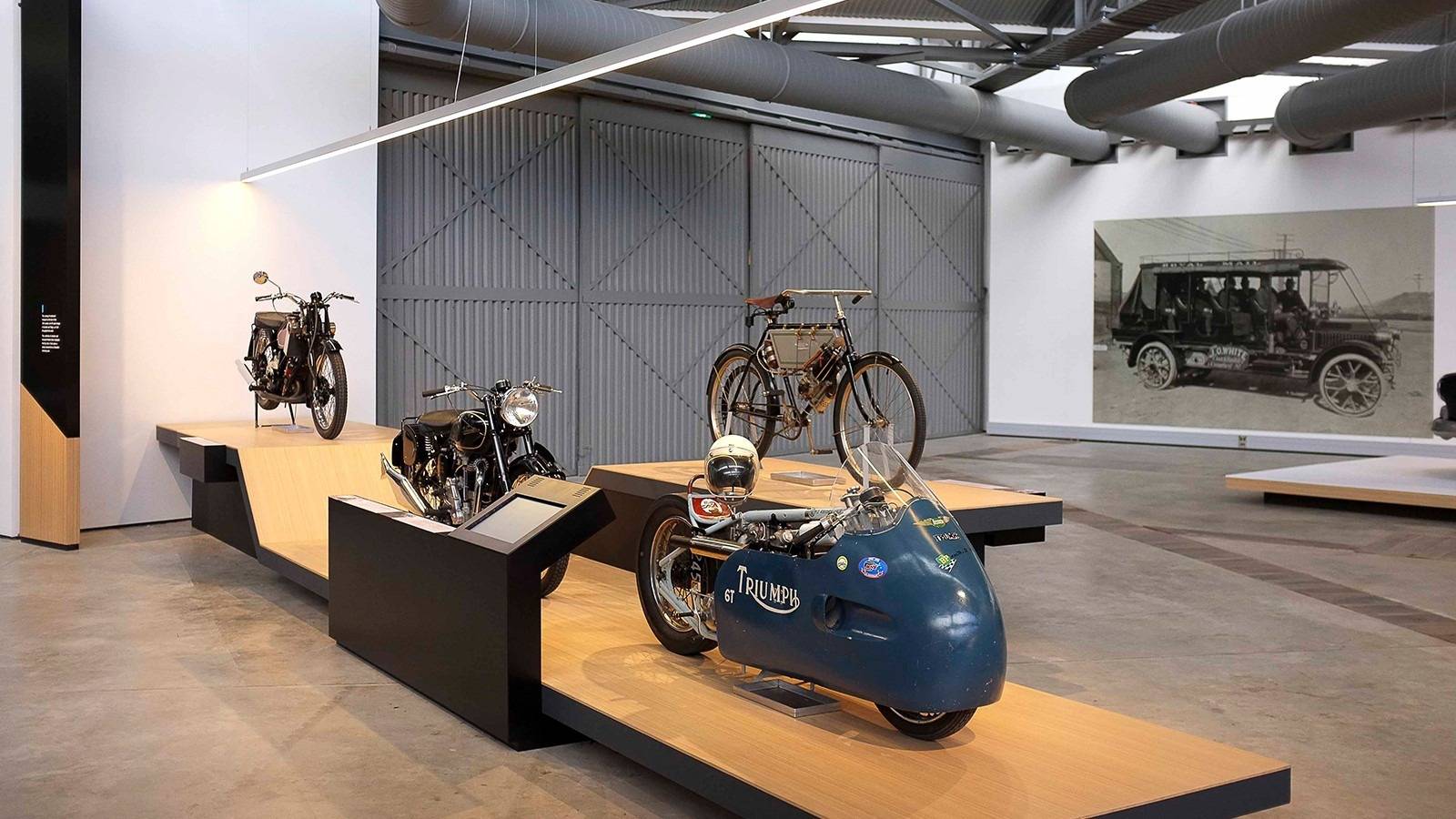

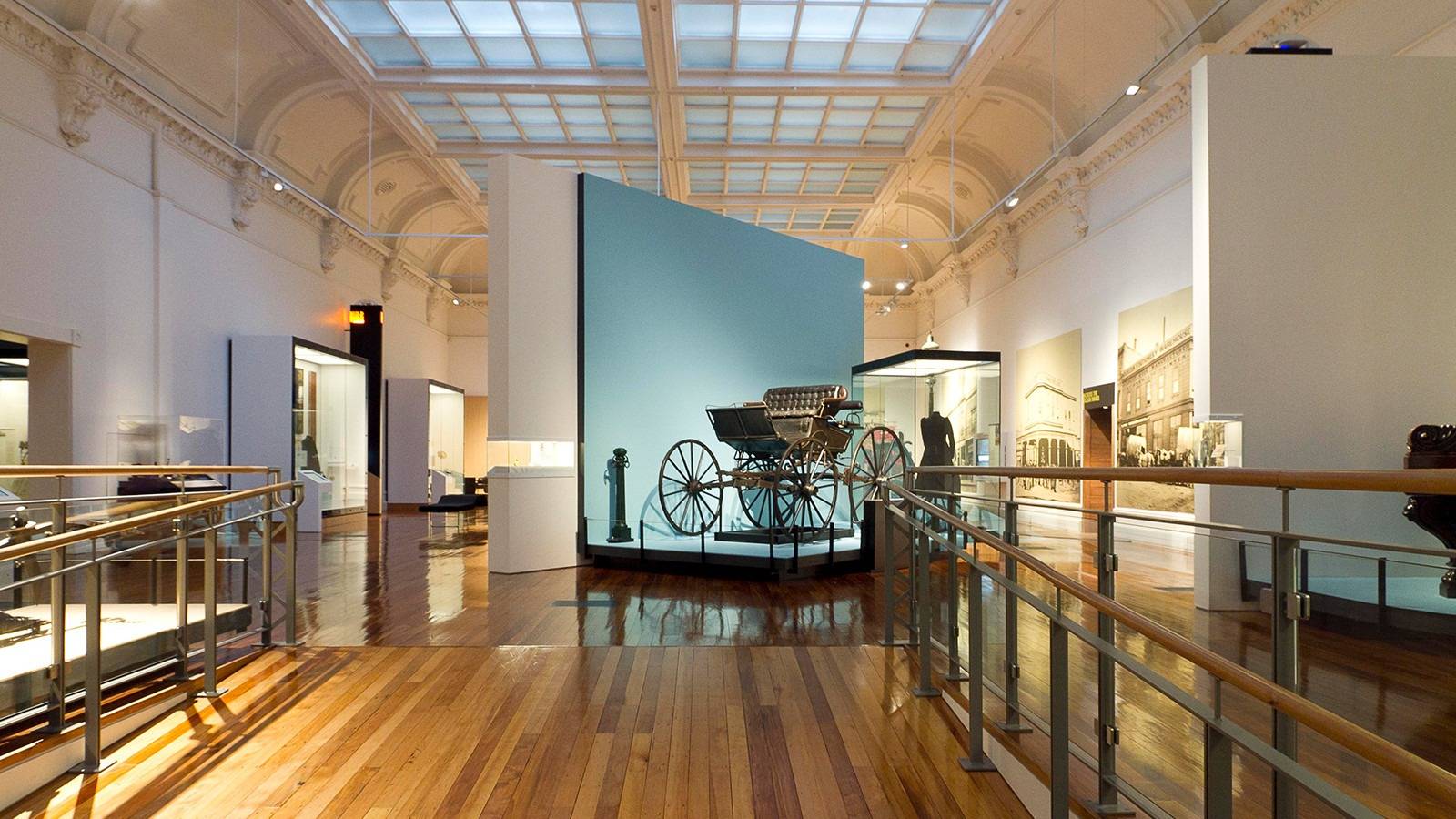

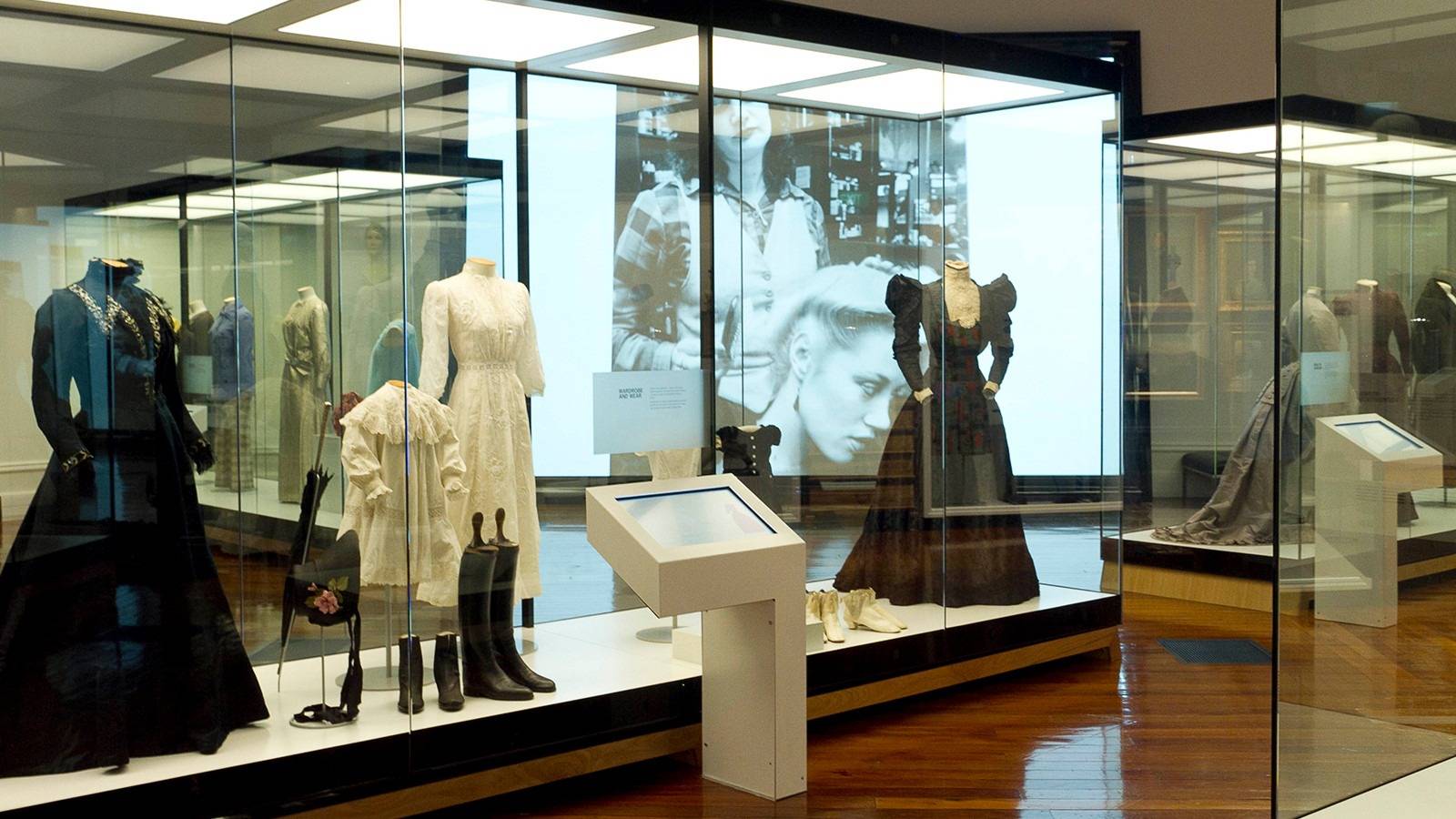

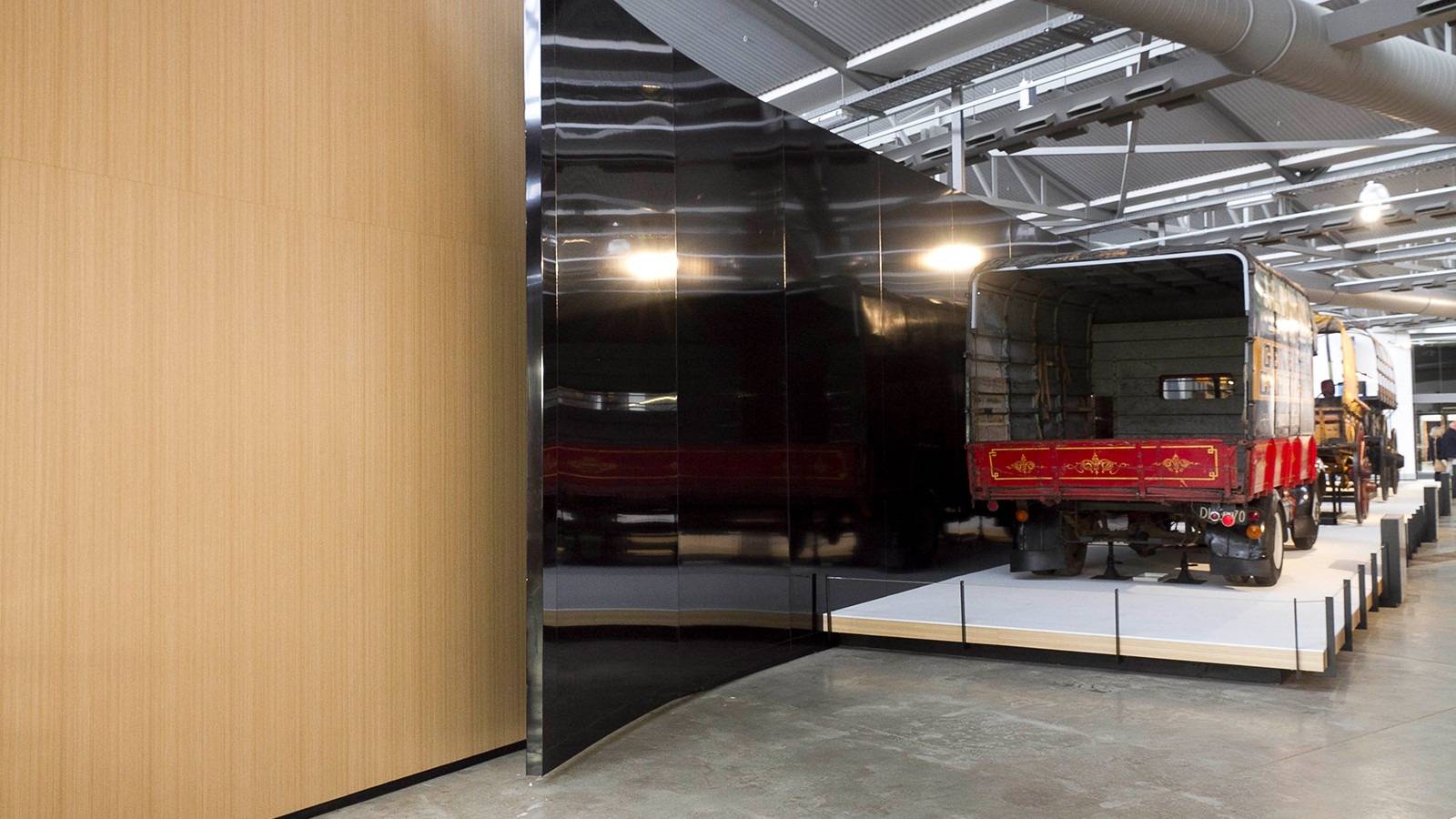

Pelorus documented the designs of Workshop E for the Toitū Otago Settlers Museum, producing detailed construction documentation that carefully preserves and supports the designers’ original intentions.
Each component was fully modelled in Autodesk Revit, allowing for a clear understanding of the complex shapes and forms.
This thorough modelling not only improved the accuracy of the documentation but also made the manufacturing process much easier and more efficient.
